Data Processing and Augmentation

Overview

Data is the basis of deep learning. Data input plays an important role in the deep neural network training. Therefore, after the original dataset is obtained and before data is loaded and trained, data processing or augmentation is often required due to data size and performance restrictions, to obtain optimized data input.
MindSpore provides users with data processing and augmentation functions.

Essentially, data augmentation is implemented through the data processing operation map. Yet data augmentation is described separately due to its diversified transform operations.

Data Processing Operations Supported by Mindspore

MindSpore supports multiple data processing operations, including repeat, batch, shuffle, and map, as shown in the following table.

Operation

Description

repeat

Repeat a dataset to increase the data size.

batch

Process data in batches to accelerate the training process.

shuffle

Shuffle data.

map

Apply the provided functions or operators to the specified column data.

zip

Combine multiple datasets into one dataset.

The operations can be performed separately. In practice, they are often used together as needed. You are advised to use them in the following sequence:

avatar

In the following example, the shuffle, batch, and repeat operations are performed when the MNIST dataset is read.

import mindspore.dataset as ds

ds1 = ds.MnistDataset(MNIST_DATASET_PATH, MNIST_SCHEMA)  # Create MNIST dataset.

ds1 = ds1.shuffle(buffer_size=10000)
ds1 = ds1.batch(32, drop_remainder=True)
ds1 = ds1.repeat(10)

In the preceding operations, data is shuffled, every 32 data records are combined into a batch, and then the dataset is repeated for 10 times.

The following describes how to construct a simple dataset ds1 and perform data processing operations on it.

  1. Import the module on which data processing depends.

    import mindspore.dataset as ds

  2. Define the generator_func() function for dataset generating.

     def generator_func():
         for i in range(5):
             yield (np.array([i, i+1, i+2]),)

  3. Use GeneratorDataset to create the dataset ds1 for data processing.

    ds1 = ds.GeneratorDataset(generator_func, ["data"])
    print("ds1:")
    for data in ds1.create_dict_iterator():
        print(data["data"])


    The output is as follows:

    ds1:
    [0 1 2]
    [1 2 3]
    [2 3 4]
    [3 4 5]
    [4 5 6]


repeat

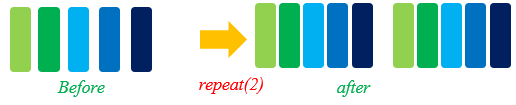

In limited datasets, to optimize the network, a dataset is usually trained for multiple times.

avatar

In machine learning, an epoch refers to one cycle through the full training dataset.

During multiple epochs, repeat() can be used to increase the data size. The definition of repeat() is as follows:

def repeat(self, count=None):

You can define the dataset ds2 and call repeat to increase the data size. The sample code is as follows:

ds2 = ds.GeneratorDataset(generator_func, ["data"])
ds2 = ds2.repeat(2)
print("ds2:")
for data in ds2.create_dict_iterator():
    print(data["data"])

Set the multiple to 2. Therefore, the data size of ds2 is twice that of the original dataset ds1. The output is as follows:

ds2:
[0 1 2]
[1 2 3]
[2 3 4]
[3 4 5]
[4 5 6]
[0 1 2]
[1 2 3]
[2 3 4]
[3 4 5]
[4 5 6]

batch

Combine data records in datasets into batches. In practice, data can be processed in batches. Training data in batches can reduce training steps and accelerate the training process. MindSpore uses the batch() function to implement the batch operation. The function is defined as follows:

avatar

def batch(self, batch_size, drop_remainder=False, num_parallel_workers=None)

Use the dataset ds1 generated by GeneratorDataset to construct two datasets.

  • In the first dataset ds2, combine every two data records into a batch.

  • In the second dataset ds3, combine every three data records into a batch, and remove the remaining data records that are less than three.

The sample code of ds2 is as follows:

ds2 = ds1.batch(batch_size=2)  # Default drop_remainder is False, the last remainder batch isn't dropped.
print("batch size:2    drop remainder:False")
for data in ds2.create_dict_iterator():
    print(data["data"])

The output is as follows:

batch size:2    drop remainder:False
[[0 1 2]
 [1 2 3]]
[[2 3 4]
 [3 4 5]]
[[4 5 6]]

The sample code of ds3 is as follows:

ds3 = ds1.batch(batch_size=3, drop_remainder=True)  # When drop_remainder is True, the last remainder batch will be dropped.
print("batch size:3    drop remainder:True")
for data in ds3.create_dict_iterator():
    print(data["data"])

The output is as follows:

batch size:3    drop remainder:True
[[0 1 2]
 [1 2 3]
 [2 3 4]]

shuffle

You can shuffle ordered or repeated datasets.

avatar

The shuffle operation is used to shuffle data. A larger value of buffer_size indicates a higher shuffling degree, consuming more time and computing resources. The definition of shuffle() is as follows:

def shuffle(self, buffer_size):

Call shuffle() to shuffle the dataset ds1. The sample code is as follows:

print("Before shuffle:")
for data in ds1.create_dict_iterator():
    print(data["data"])

ds2 = ds1.shuffle(buffer_size=5)
print("After shuffle:")
for data in ds2.create_dict_iterator():
    print(data["data"])

The possible output is as follows. After data is shuffled, the data sequence changes randomly.

Before shuffle:
[0 1 2]
[1 2 3]
[2 3 4]
[3 4 5]
[4 5 6]
After shuffle:
[3 4 5]
[2 3 4]
[4 5 6]
[1 2 3]
[0 1 2]

map

The map operation is used to process data. For example, convert the dataset of color images into the dataset of grayscale images. You can flexibly perform the operation as required. MindSpore provides the map() function to map datasets. You can apply the provided functions or operators to the specified column data.
You can customize the function or use c_transforms or py_transforms for data augmentation.

For details about data augmentation operations, see [Data Augmentation](#Data Augmentation).

avatar

The definition of map() is as follows:

def map(self, input_columns=None, operations=None, output_columns=None, columns_order=None,
        num_parallel_workers=None):

In the following example, the map() function is used to apply the defined anonymous function (lambda function) to the dataset ds1 so that the data values in the dataset are multiplied by 2.

func = lambda x : x*2  # Define lambda function to multiply each element by 2.
ds2 = ds1.map(input_columns="data", operations=func)
for data in ds2.create_dict_iterator():
    print(data["data"])

The code output is as follows. Data values in each row of the dataset ds2 is multiplied by 2.

[0 2 4]
[2 4 6]
[4 6 8]
[6 8 10]
[8 10 12]

zip

MindSpore provides the zip() function to combine multiple datasets into one dataset.

If the column names in the two datasets are the same, the two datasets are not combined. Therefore, pay attention to column names.
If the number of rows in the two datasets is different, the number of rows after combination is the same as the smaller number.

def zip(self, datasets):
  1. Use the preceding construction method of the dataset ds1 to construct the dataset ds2.

    def generator_func2():
        for i in range(5):
            yield (np.array([i-3, i-2, i-1]),)

    ds2 = ds.GeneratorDataset(generator_func2, ["data2"])

  2. Use zip() to combine the data1 column of the dataset ds1and the data2 column of the dataset ds2 into the dataset ds3.

    ds3 = ds.zip((ds1, ds2))
    for data in ds3.create_dict_iterator():
        print(data)


    The output is as follows:

    {'data1': array([0, 1, 2], dtype=int64), 'data2': array([-3, -2, -1], dtype=int64)}
    {'data1': array([1, 2, 3], dtype=int64), 'data2': array([-2, -1,  0], dtype=int64)}
    {'data1': array([2, 3, 4], dtype=int64), 'data2': array([-1,  0,  1], dtype=int64)}
    {'data1': array([3, 4, 5], dtype=int64), 'data2': array([0, 1, 2], dtype=int64)}
    {'data1': array([4, 5, 6], dtype=int64), 'data2': array([1, 2, 3], dtype=int64)}


Data Augmentation

During image training, especially when the dataset size is relatively small, you can preprocess images by using a series of data augmentation operations, thereby enriching the datasets.
MindSpore provides the c_transforms and py_transforms module functions for users to perform data augmentation. You can also customize functions or operators to perform data augmentation. The following table describes the two modules provided by MindSpore. For details, see the related description in the API reference document.

Module

Implementation

Description

c_transforms

C++-based OpenCV implementation

The performance is high.

py_transforms

Python-based PIL implementation

This module provides multiple image augmentation functions and the method for converting PIL images into NumPy arrays.

For users who would like to use Python PIL in image learning tasks, the py_transforms module is a good tool for image augmentation. You can use Python PIL to customize extensions.
Data augmentation requires the map() function. For details about how to use the map() function, see map.

Using the c_transforms Module

  1. Import the module to the code.

    import mindspore.dataset.transforms.vision.c_transforms as transforms
    import matplotlib.pyplot as plt
    import matplotlib.image as mpimg

  2. Define data augmentation operators. The following uses Resize as an example:

    dataset = ds.ImageFolderDatasetV2(DATA_DIR, decode=True)  # Decode images.
    resize_op = transforms.Resize(size=(500,500), interpolation=Inter.LINEAR)
    dataset.map(input_columns="image", operations=resize_op)

    for data in dataset.create_dict_iterator():
        imgplot_resized = plt.imshow(data["image"])
        plt.show()


The running result shows that the original image is changed from 1024 x 683 pixels to 500 x 500 pixels after data processing by using Resize(). avatar

Figure 1: Original image

avatar

Figure 2: Image after its size is reset

Using the py_transforms Module

  1. Import the module to the code.

    import mindspore.dataset.transforms.vision.py_transforms as transforms
    import matplotlib.pyplot as plt
    import matplotlib.image as mpimg

  2. Define data augmentation operators and use the ComposeOp API to combine multiple data augmentation operations. The following uses RandomCrop as an example:

    dataset = ds.ImageFolderDatasetV2(DATA_DIR)

    transforms_list = [
        transforms.Decode(),  # Decode images to PIL format.
        transforms.RandomCrop(size=(500,500)),
        transforms.ToTensor()  # Convert PIL images to Numpy ndarray.
    ]
    compose = transforms.ComposeOp(transforms_list)
    dataset = dataset.map(input_columns="image", operations=compose())
    for data in dataset.create_dict_iterator():
         print(data["image"])
         imgplot_resized = plt.imshow(data["image"].transpose(1, 2, 0))
         plt.show()


The running result shows that the original image is changed from 1024 x 683 pixels to 500 x 500 pixels after data processing by using RandomCrop(). avatar

Figure 1: Original image

avatar

Figure 2: 500 x 500 image that is randomly cropped from the original image
