Enabling Graph Kernel Fusion

Linux Ascend Model Optimization Intermediate Expert

View Source On Gitee

Overview

The graph kernel fusion is used to analyze and optimize the computational graph logic of the existing network, as well as split, reconstruct, and fuse the original computing logic to reduce the overhead of operator execution gaps and improve the computing resource utilization of devices, thereby optimizing the overall execution time of the network.

The example in this tutorial applies to hardware platforms based on the Ascend 910 AI processor, whereas does not support CPU and GPU scenarios.

Enabling Method

The optimization of graph kernel fusion in MindSpore is distributed in multiple compilation and execution steps at the network layer. By default, the function is disabled. You can specify the enable_graph_kernel=True parameter for context in the training script to enable the graph kernel fusion.

from mindspore import context
context.set_context(enable_graph_kernel=True)

Sample Scripts

  1. Simple example

    To illustrate the fusion scenario, two simple networks are constructed. The NetBasicFuse network includes multiplication and addition, and the NetCompositeFuse network includes multiplication, addition, and exponentiation. The following code example is saved as the test_graph_kernel_fusion.py file.

    import numpy as np
    import mindspore.context as context
    from mindspore import Tensor
    from mindspore.nn import Cell
    import mindspore.ops as ops

    context.set_context(mode=context.GRAPH_MODE, device_target="Ascend")
    # save graph ir files.
    context.set_context(save_graphs=True)
    # enable graph kernel fusion.
    context.set_context(enable_graph_kernel=True)

    # example for basic fusion.
    class NetBasicFuse(Cell):
        def __init__(self):
            super(NetBasicFuse, self).__init__()
            self.add = ops.TensorAdd()
            self.mul = ops.Mul()

        def construct(self, x):
            mul_res = self.mul(x, 2.0)
            add_res = self.add(mul_res, 1.0)
            return add_res


    # example for composite fusion.
    class NetCompositeFuse(Cell):
        def __init__(self):
            super(NetCompositeFuse, self).__init__()
            self.add = ops.TensorAdd()
            self.mul = ops.Mul()
            self.pow = ops.Pow()

        def construct(self, x):
            mul_res = self.mul(x, 2.0)
            add_res = self.add(mul_res, 1.0)
            pow_res = self.pow(add_res, 3.0)
            return pow_res


    def test_basic_fuse():
        x = np.random.randn(4, 4).astype(np.float32)
        net = NetBasicFuse()
        result = net(Tensor(x))
        print("================result=======================")
        print("x: {}".format(x))
        print("result: {}".format(result))
        print("=======================================")


    def test_composite_fuse():
        x = np.random.randn(4, 4).astype(np.float32)
        net = NetCompositeFuse()
        result = net(Tensor(x))
        print("================result=======================")
        print("x: {}".format(x))
        print("result: {}".format(result))
        print("=======================================")

  2. BERT-large training network

    Take the training model of the BERT-large network as an example. For details about the dataset and training script, see https://gitee.com/mindspore/mindspore/tree/r1.0/model_zoo/official/nlp/bert. You only need to modify the context parameter.

Effect Evaluation

To verify whether the graph kernel fusion takes effect, you can compare the changes of the computational graph before and after the fusion is enabled as well as the change of the network training time for one step.

Computational Graph

  1. Basic operator fusion: Analyze associated basic operators on the network. Fuse multiple basic operators into a composite operator on the condition that performance benefits can be obtained. The following uses NetBasicFuse as an example.

    pytest -s test_graph_kernel_fusion::test_basic_fuse


    After the script execution is complete, you will find some .dot files in the script running directory. Use the dot tool to convert the .dot files into .png files for viewing. 6_validate.dot and hwopt_d_fuse_basic_opt_end_graph_0.dot are used to generate the initial computational graph and the computational graph after basic operator fusion.

    As shown in Figure 1, there are two basic operators in the initial computing of the constructed network. After the graph kernel fusion function is enabled, the two basic operators (Mul and TensorAdd) automatically compose one operator (composite operator). In Figure 2, the upper right part is the composite operator after fusion. Currently, the network only needs to execute one composite operator to complete the Mul and TensorAdd computing.

    Initial computational graph

    Figure 1 Initial computational graph

    Basic operator fusion

    Figure 2 Computational graph after basic operator fusion

  2. Composite operator fusion: Analyze the original composite operator and its related basic operators. The original composite operator and a basic operator compose a larger composite operator on the condition that performance benefits can be obtained. The following uses NetCompositeFuse as an example.

    pytest -s test_graph_kernel_fusion::test_composite_fuse


    Similarly, 6_validate.dot, hwopt_d_fuse_basic_opt_end_graph_0.dot, and hwopt_d_composite_opt_end_graph_0.dot are used to generate the initial computational graph, the computational graph after basic operator fusion, and the computational graph after composite operator fusion.

    As shown in Figure 3, there are three basic operators in the initial computing of the constructed network. After the graph kernel fusion function is enabled, the first two basic operators (Mul and TensorAdd) automatically compose one operator (composite operator) at the basic operator fusion stage. As shown in Figure 4, the upper right part shows the composite operator after fusion, and the lower left part shows a basic operator Pow. At the subsequent composite operator fusion stage, the remaining basic operator (Pow) and an existing composite operator are further fused to form a new composite operator. In Figure 5, the upper right part is the composite operator after the three basic operators are fused. Currently, the network only needs to execute one composite operator to complete the Mul, TensorAdd, and Pow computing.

    Initial computational graph

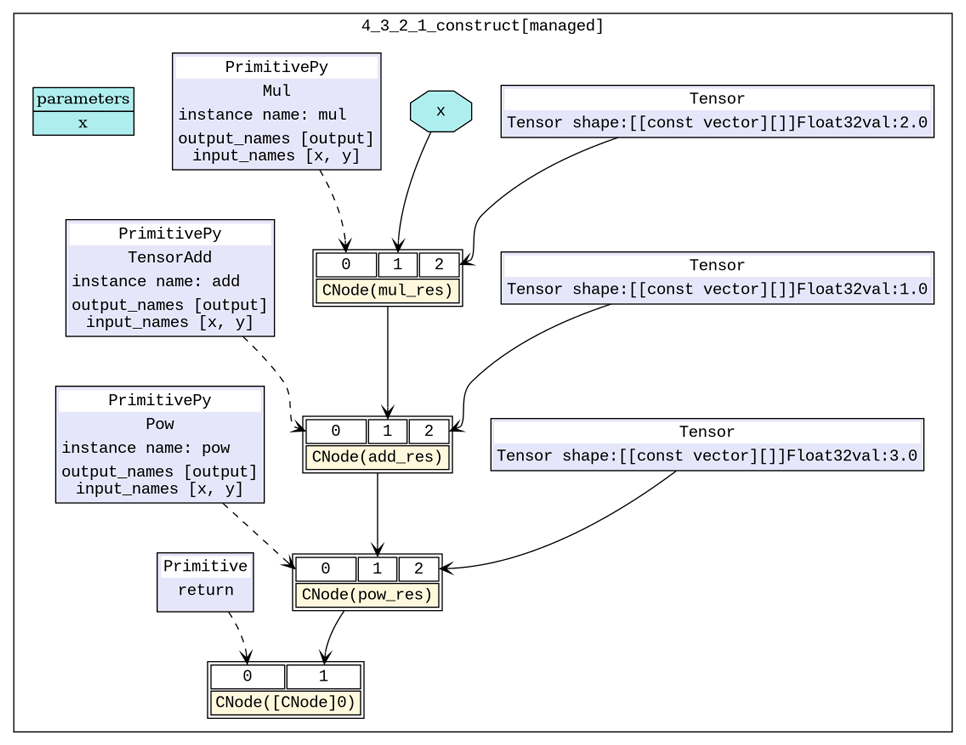

    Figure 3 Initial computational graph

    Basic operator fusion

    Figure 4 Computational graph after basic operator fusion

    Composite operator fusion

    Figure 5 Computational graph after composite operator fusion
